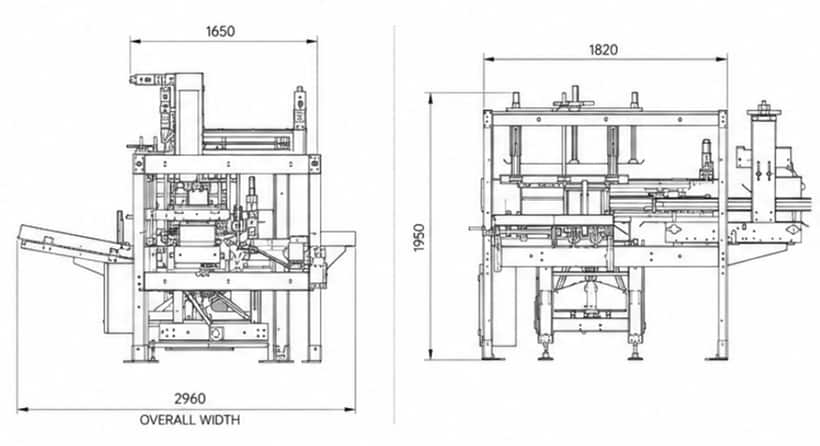

Carton Erector
Flat blank to case.
Flat-folded blanks are picked from the magazine, opened, squared and bottom-sealed — a formed case is presented to the packing line every six seconds.
The sequence
Load blanks
Flat-folded blanks are loaded by hand into the carton magazine.
Pick & transfer
A vacuum suction system picks one blank and transfers it to the forming station.
Open & square
The blank is opened and positively squared to establish carton geometry.
Fold bottom flaps
Minor flaps fold inward, then the major flaps, ready for closure.
Seal the bottom
Sealed with adhesive tape or hot-melt glue, to machine configuration.
Discharge
The erected, bottom-sealed carton leaves on the downstream conveyor.
The detail
Typical for a standard build. Every machine is engineered to the product, pattern and layout of the line it serves.
